OSHA PSM PSV Service Interval Procedure Template Flowchart and Logic

PSV Service Interval Procedure: OSHA PSM Mechanical Integrity Template

“Industrial incident reports often cite 'extended or inappropriate service intervals' as a contributing factor in safety valve failures. Is your testing schedule based on rigorous technical logic or mere guesswork?”

Effective Pressure Safety Valve (PSV) management requires more than just maintenance; it requires a systematic framework for determining testing frequencies. Our procedure supports the technical analysis of service history to help your team identify integrity risks before they escalate into a catastrophic overpressure event.

*See Professional Disclaimer regarding maintenance intervals.

Decision-Driven Logic

Includes a visual flowchart to guide teams through the technical criteria for adjusting service intervals.

Designed for OSHA PSM

Developed to support Mechanical Integrity requirements under the 1910.119 standard.

Fully Editable Word Doc

Immediate professional starting point that allows for facility-specific tailoring and approval.

Maintaining pressure safety valves (PSVs) is critical for the safe operation of your facility. Our PSV Service Interval Procedure, provided in an editable Word format, is designed to support OSHA compliance and PSM requirements, promoting the integrity of your equipment and the safety of your personnel.

Your purchase is securely processed by PayPal.
Delivered in minutes: How it works.

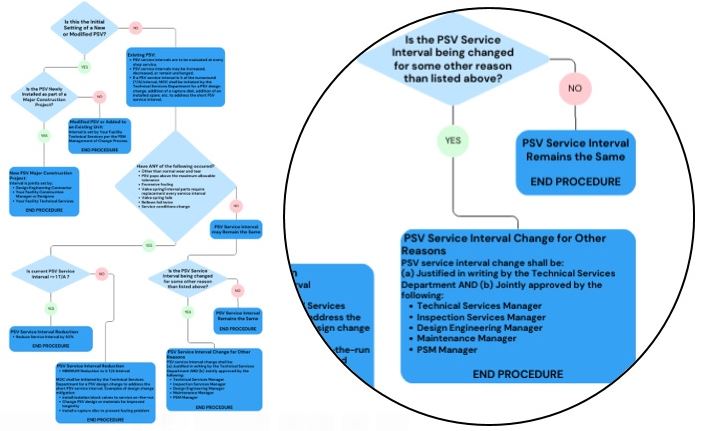

PSV Service Interval Flowchart & Logic

Flowchart diagramming the logic within the Pressure Safety or Pressure Relief Valve Service Interval Management Procedure MS Word-based template

Key Benefits of Our PSV Service Interval Procedure

  • Regulatory Alignment: Promotes OSHA 1910.119 requirements for mechanical integrity, providing a structured approach for PSV maintenance and inspection.
  • Systematic Approach: Provides a clear, step-by-step process for setting, changing, and documenting PSV service intervals, minimizing guesswork and maximizing safety.
  • Risk Mitigation: Helps reduce the likelihood of PSV failures, leaks, and overpressure incidents, protecting your facility from costly downtime and potential harm.
  • Extensive Coverage: Applicable to various pressure safety devices including pressure relief valves, vacuum breakers, rupture disks, and storage tank breather valves.
  • Informed Decision-Making: Incorporates key factors like process conditions, operating history, and metallurgy for tailored, effective service intervals.
  • Documented Process: Provides clear accountability and record-keeping to meet audit requirements and demonstrate your commitment to safety and compliance.

What's Included in Our PSV Service Interval Template?

  • Detailed Scope: Clearly defines the purpose and applicability of the procedure.
  • Conditions for Implementing: Outlines when to initiate the procedure, such as after PSV installation, modification, or service.
  • Reference Documents: Provides links to key standards and codes such as National Board, API, and ASME.
  • Accountability: Assigns responsibilities to PSV Valve Shop, Technical Services, and Process Safety Management teams.
  • Specific Intervals: Sets maximum service intervals based on process conditions (corrosive vs. non-corrosive) and equipment type.
  • Interval Adjustment Guidelines: Establishes criteria for adjusting service intervals based on performance, valve condition, and changes in operating conditions.
  • Flowchart: Visual diagram of the complete decision-making process.

Is This PSV Procedure Right for Your Facility?

This procedure is ideal for facilities that operate with PSVs and are required to maintain strict safety standards and meet PSM requirements. This includes:

  • Refineries
  • Chemical Plants
  • Power Plants
  • Petrochemical Facilities
  • Any facility with pressure vessel equipment subject to OSHA standards

Technical Preview: PSV Procedure

Verify the document structure, technical rigor, and decision-logic flowchart before you buy. This preview provides a look at the framework designed to support your facility’s mechanical integrity program.

Read: PSV Sevice Interval Strategy →

The Strategic Solution: PSM Toolkit

Augment your safety program for a calculated savings of $662. This flagship toolkit includes the PSV Procedure, the What-If PHA Tool, and 97 specialized procedures to facilitate full OSHA/EPA compliance alignment.
