Control Valve Installed Flow and Gain Calculation Tool (Excel)

Optimize Control Valve Performance for Superior Process Control

Process Engineering Focus:

• Model control valve behavior within the context of the overall process, understanding how valve performance impacts the entire system.
• Evaluate different valve types and sizes to optimize system efficiency, stability, and throughput.
• Design control strategies that account for installed valve characteristics, ensuring reliable and predictable operation.
• As Jon Monsen suggests in *Flow Control Magazine*, for systems with a lot of pipe and pressure drop, equal percentage valves are often best.

PID Tuning Integration:

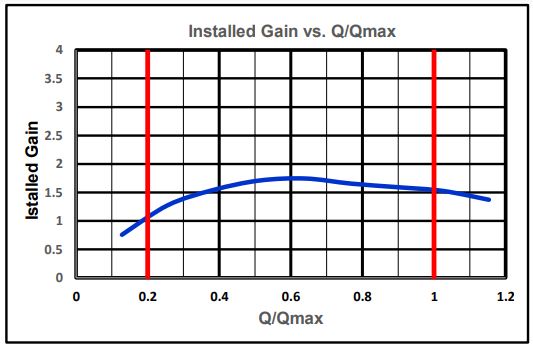

• Understand how installed gain directly influences PID loop tuning parameters. A well-characterized valve simplifies the tuning process and improves loop performance.
• Identify potential tuning challenges related to non-linear installed gain and implement appropriate solutions.
• Achieve tighter control and reduced process variability through informed PID tuning based on accurate valve modeling.

Key Benefits:

• Predict how much the flow will change with any amount of valve travel.
• Identify flow changes that may disrupt the system.

Engineering Benefits:

• Precisely model control valve behavior within your specific piping system using a static process model based on established engineering principles.
• Optimize valve sizing and selection based on quantifiable installed flow and gain characteristics, leading to improved stability and responsiveness.
• Troubleshoot existing control valve installations by comparing actual performance against modeled predictions.
• Avoid sizing mistakes like selecting an over-sized valve, since as Jon Monsen notes in *Process Instrumentation* an over-sized valve may be too sensitive, meaning that small changes in the valve position will cause large changes in flow.

Mathematical Foundation:

• Applies fundamental fluid dynamics principles and mathematical modeling techniques to calculate pressure drops, flow rates, and valve characteristics.
• Utilizes a rigorous approach based on equations and data, promoting a deeper understanding of control valve behavior.
• Utilizes calculations that apply a static process model assuming fully turbulent flow and applying friction loss approximations.

Educational Value:

• Ideal for engineering students and professionals seeking a practical, hands-on learning experience in control valve analysis.
• Provides a step-by-step framework for understanding installed gain, flow characteristics, and their impact on overall system performance.
• Encourages critical thinking and problem-solving skills through scenario-based analysis and optimization.

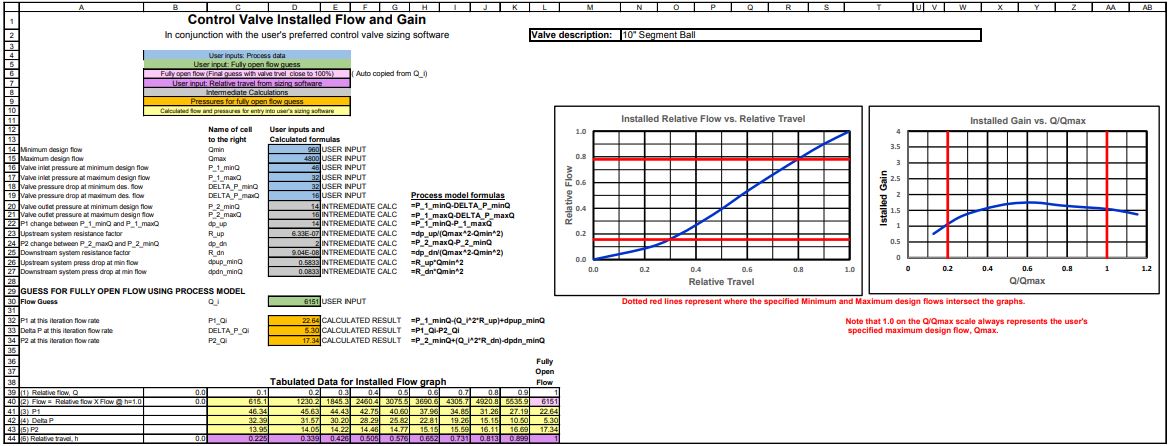

This tool is especially useful as a guide, or cross-reference, when used with commercially available valve sizing software. As emphasized in "Calculating the Installed Flow and Gain of a Control Valve" in "Process Instrumentation" (Monsen, March 2021), understanding installed characteristics are graphed as relative flow versus relative travel.
