Editable Induction Motor Datasheet Template in Excel

Build a Custom Electric Motor Datasheet with Our Fully Editable Excel Template

“In industrial operations, a single mismatched motor specification can lead to significant downtime or equipment failure. Are your technical records accurate enough to ensure a seamless replacement?”

Standardizing your motor data with a professional technical framework supports the accurate recording of over 100 attributes, helping your team identify critical requirements before they become a procurement or operational risk.

*See Professional Disclaimer regarding equipment specification.

Trusted by Engineers

Used by Electrical and Maintenance teams across the manufacturing sector since 2016.

100+ Data Fields

Extensive range of attributes for Induction motors including NEMA frame, insulation, and cooling.

Rapid Documentation

Fully editable Excel format allows for immediate customization and data entry for critical assets.

Tailor text, layout, fonts, and more to your needs. Simplify maintenance and replacements by recording vital motor specs. Instantly access essential information for seamless repairs. Seamlessly communicate motor specifications to suppliers. With 100+ fields for electrical and general characteristics, including voltage, speed, mounting, cooling, and more, you'll professionally manage motor data. Maximize efficiency and accuracy today! Specify the physical properties and electrical characteristics of an induction motor with our fully editable datasheet template that allows easy customization of text, layout, cell widths, fonts, etc.

  • Record the specifications for essential motors in your facility.
  • Have easy access to important information necessary for repairs and replacement.
  • Be prepared for communicating motor specs to vendors.

Note: we also have a Servo Motor Datasheet Template in Excel format.

Your purchase is securely processed by PayPal.
Delivered in minutes: How it works.

Electric Induction Motor Datasheet Template in Excel - Preview
Image above is intentionally fuzzy.

Professionally specify 100+ fields, attributes, physical properties, and electrical characteristics.

Sample Electrical Characteristics:

  • Voltage
  • Phase
  • Poles
  • Rotor Type
  • Hertz
  • Current
  • Power
  • Speed
  • Insulation Class

Sample General Characteristics:

  • Frame Size
  • Mounting
  • Cooling
  • Enclosure

Includes Specification Sections:

  • Spare Parts
  • Capacitors
  • Encoders

Helpful Electric Motor Resources

Dimensions of Electric Motor Frames NEMA 1984

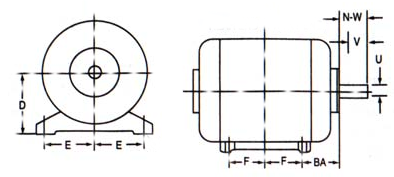

NEMA Motor Frame Dimensions Diagram - Key for Shaft and Mounting Measurements

NEMA Frame Number Frame Dimensions (inches)
D E 2F BA N-W V U
42 2 5/8 1 3/4 1 11/16 2 1/16 1 1/8 3/8
42C 2 5/8 1 3/4 1 11/16 2 1/16 1 1/8 3/8
48 3 2 1/8 2 3/4 2 1/2 1 1/2 1/2
48C 3 2 1/8 2 3/4 2 1/2 1 1/2 1/2
48H 3 2 1/8 4 3/4 2 1/2 1 1/2 1/2
56 3 1/2 2 7/16 3 2 3/4 1 7/8 5/8
56C 3 1/2 2 7/16 2 3/4 1 7/8 5/8
56H 3 1/2 2 7/16 5 2 3/4 1 7/8 5/8
56HZ 3 1/2 2 7/16 5 2 3/4 2 1/4 2 7/8
56J 3 1/2 2 7/16 2 3/4 2 7/16 5/8
66 4 1/8 2 15/16 5 3 1/8 2 1/4 3/4
140T 3 1/2 2 3/4 4 2 3/4 2 1/4 7/8
142AT 3 1/2 2 3/4 3 1/4 2 3/4 1 3/4 1 1/2 7/8
143AT 3 1/2 2 3/4 4 2 1/4 1 3/4 1 1/2 7/8
143JM 3 1/2 2 3/4 4 2 1/4 7/8
143JP 3 1/2 2 3/4 4 2 1/4 7/8
143T 3 1/2 2 3/4 4 2 1/4 2 1/4 2 7/8
143TC 3 1/2 2 3/4 4 2 3/4 2 1/4 7/8
143TR 3 1/2 2 3/4 4 2 1/4 2 5/8 1 3/4 7/8
144AT 3 1/2 2 3/4 4 1/2 2 3/4 1 3/4 1 1/2 7/8
145AT 3 1/2 2 3/4 5 2 3/4 1 3/4 1 1/2 7/8
145JM 3 1/2 2 3/4 5 2 1/4 7/8
145JP 3 1/2 2 3/4 5 2 1/4 7/8
145T 3 1/2 2 3/4 5 2 1/4 2 1/4 2 7/8
145TC 3 1/2 2 3/4 5 2 3/4 2 1/4 7/8
145TR 3 1/2 2 3/4 5 2 1/4 2 5/8 1 3/4 7/8
146AT 3 1/2 2 3/4 5 1/2 2 3/4 1 3/4 1 1/2 7/8
146ATC 3 1/2 2 3/4 5 1/2 2 3/4 2 1/4 7/8
147AT 3 1/2 2 3/4 6 1/4 2 3/4 1 3/4 1 1/2 7/8
148AT 3 1/2 2 3/4 7 2 3/4 1 3/4 1 1/2 7/8
149AT 3 1/2 2 3/4 8 2 3/4 1 3/4 1 1/2 7/8
1410AT 3 1/2 2 3/4 9 2 3/4 1 3/4 1 1/2 7/8
1411AT 3 1/2 2 3/4 10 2 3/4 1 3/4 1 1/2 7/8
1412AT 3 1/2 2 3/4 11 2 3/4 1 3/4 1 1/2 7/8
1412ATC 3 1/2 2 3/4 11 2 3/4 2 1/4 7/8
162AT 4 3 1/8 4 2 1/2 1 3/4 1 1/2 7/8
163AT 4 3 1/8 4 1/2 2 1/2 1 3/4 1 1/2 7/8
164AT 4 3 1/8 2 1/2 2 1/2 1 3/4 1 1/2 7/8
165AT 4 3 1/8 5 1/22 1/2 2 1/2 1 3/4 1 1/2 7/8
166AT 4 3 1/8 6 1/4 2 1/2 1 3/4 1 1/2 7/8
167AT 4 3 1/8 7 2 1/2 1 3/4 1 1/2 7/8
168AT 4 3 1/8 8 2 1/2 1 3/4 1 1/2 7/8
169AT 4 3 1/8 9 2 1/2 1 3/4 1 1/2 7/8
1610AT 4 3 1/8 10 2 1/2 1 3/4 1 1/2 7/8
182 4 1/2 3 3/4 4 1/2 2 3/4 2 1/4 2 7/8
L182ACY 4 1/2 3 3/4 4 1/2 2 3/4 2 1/4 2 7/8
182AT 4 1/2 3 3/4 4 1/2 2 3/4 2 1/4 2 1 1/8
L182AT 4 1/2 3 3/4 4 1/2 2 3/4 2 1 1/8
182JM 4 1/2 3 3/4 4 1/2 2 3/4 7/8
182JP 4 1/2 3 3/4 4 1/2 2 3/4 2 3/4 7/8
182T 4 1/2 3 3/4 4 1/2 2 3/4 2 3/4 2 1/2 1 1/8
182TC 4 1/2 3 3/4 4 1/2 2 3/4 2 3/4 1 1/8
182TR 4 1/2 3 3/4 4 1/2 2 3/4 2 1/4 2 1/4 1 1/8
183AT 4 1/2 3 3/4 5 2 3/4 2 1/4 2 1 1/8
184 4 1/2 3 3/4 5 1/2 2 3/4 2 1/4 2 7/8
184AT 4 1/2 3 3/4 5 1/2 2 3/4 2 1/4 2 1 1/8
184JM 4 1/2 3 3/4 5 1/2 2 3/4 7/8
184JP 4 1/2 3 3/4 5 1/2 2 3/4 7/8
184TC 4 1/2 3 3/4 5 1/2 2 3/4 2 3/4 1 1/8
184T 4 1/2 3 3/4 5 1/2 2 3/4 2 3/4 2 1/2 1 1/8
184TR 4 1/2 3 3/4 5 1/2 2 3/4 3 3/8 2 1/4 1 1/8
185AT 4 1/2 3 3/4 6 1/4 2 3/4 2 1/4 2 1 1/8
186ACY 4 1/2 3 3/4 7 2 3/4 2 1/4 2 7/8
186AT 4 1/2 3 3/4 7 2 3/4 2 1/4 2 1 1/8
L186AT 4 1/2 3 3/4 7 2 3/4 2 1/4 2 1 1/8
186ATC 4 1/2 3 3/4 7 2 3/4 2 1/4 1 1/8
187AT 4 1/2 3 3/4 8 2 3/4 2 1/4 2 1 1/8
188AT 4 1/2 3 3/4 9 2 3/4 2 1/4 2 1 1/8
189AT 4 1/2 3 3/4 10 2 3/4 2 1/4 2 1 1/8
189ATC 4 1/2 3 3/4 10 2 3/4 2 1/4 1 1/8
1810AT 4 1/2 3 3/4 11 2 3/4 2 1/4 2 1 1/8
203 5 4 5 1/2 3 1/8 2 1/4 2 3/4
204 5 4 6 1/4 3 1/8 2 1/4 2 3/4
213 5 1/4 4 1/4 5 1/2 3 1/2 3 2 3/4 1 1/8
213AT 5 1/4 4 1/4 5 1/2 3 1/2 2 3/4 2 1/2 1 3/8
213JM 5 1/4 4 1/4 5 1/2 3 1/2 7/8
213JP 5 1/4 4 1/4 5 1/2 3 1/2 1 1/4
213T 5 1/4 4 1/4 5 1/2 3 1/2 3 3/8 3 1/8 1 3/8
213TC 5 1/4 4 1/4 5 1/2 3 1/2 3 3/8 1 3/8
213TR 5 1/4 4 1/4 5 1/2 3 1/2 4 1/8 2 5/8 1 3/8
214AT 5 1/4 4 1/4 6 1/4 3 1/2 2 3/4 2 1/2 1 3/8
215 5 1/4 4 1/4 7 3 1/2 3 2 3/4 1 1/8
215AT 5 1/4 4 1/4 7 3 1/2 2 3/4 2 1/2 1 3/8
215JM 5 1/4 4 1/4 7 3 1/2 7/8
215JP 5 1/4 4 1/4 7 3 1/2 1 1/4
215T 5 1/4 4 1/4 7 3 1/2 3 3/8 3 1/8 1 3/8
215TC 5 1/4 4 1/4 7 3 1/2 3 3/8 1 3/8
215TR 5 1/4 4 1/4 7 3 1/2 4 1/8 2 5/8 1 3/8
216AT 5 1/4 4 1/4 8 3 1/2 2 3/4 2 1/2 1 3/8
217AT 5 1/4 4 1/4 9 3 1/2 2 3/4 2 1/2 1 3/8
218AT 5 1/4 4 1/4 10 3 1/2 2 3/4 2 1/2 1 3/8
219AT 5 1/4 4 1/4 11 3 1/2 2 3/4 2 1/2 1 3/8
219ATC 5 1/4 4 1/4 11 3 1/2 2 3/4 1 3/8
2110AT 5 1/4 4 1/4 12 1/2 3 1/2 2 3/4 2 1/2 1 3/8
2110ATC 5 1/4 4 1/4 12 1/2 3 1/2 2 3/4 1 3/8
224 5 1/2 4 1/2 6 3/4 3 1/2 3 2 3/4 1
225 5 1/2 4 1/2 7 1/2 3 1/2 3 2 3/4 1
253AT 6 1/4 5 7 4 1/4 3 1/4 3 1 5/8
254 6 1/4 5 8 1/4 4 1/4 3 3/8 3 1/8 1 1/8
254AT 6 1/4 5 8 1/4 4 1/4 3 1/4 3 1 5/8
254T 6 1/4 5 8 1/4 4 1/4 4 3 3/4 1 5/8
254TC 6 1/4 5 8 1/4 4 1/4 4 1 5/8
254TR 6 1/4 5 8 1/4 4 1/4 4 1/2 2 7/8 1 5/8
254U 6 1/4 5 8 1/4 4 1/4 3 3/4 3 1/2 1 5/8
255AT 6 1/4 5 9 4 1/4 3 1/4 3 1 5/8
256AT 6 1/4 5 10 4 1/4 3 1/4 3 1 5/8
256T 6 1/4 5 10 4 1/4 4 3 3/4 1 5/8
256TC 6 1/4 5 10 4 1/4 4 1 5/8
256TR 6 1/4 5 10 4 1/4 4 1/2 2 7/8 1 5/8
256U 6 1/4 5 10 4 1/4 3 3/4 3 1/2 1 3/8
257AT 6 1/4 5 11 4 1/4 3 1/4 3 1 5/8
258AT 6 1/4 5 12 1/2 4 1/4 3 1/4 3 1 5/8
259AT 6 1/4 5 14 4 1/4 3 1/4 3 1 5/8
283AT 7 5 1/2 8 4 3/4 3 1/4 3 1/2 1 7/8
284 7 5 1/2 9 1/2 4 3/4 3 3/4 3 1/2 1 1/4
284AT 7 5 1/2 9 1/2 4 3/4 3 3/4 3 1/2 1 7/8
284T 7 5 1/2 9 1/2 4 3/4 4 5/8 4 3/8 1 7/8
284TC 7 5 1/2 9 1/2 4 3/4 4 5/8 1 7/8
284TR 7 5 1/2 9 1/2 4 3/4 4 3/4 3 1/8 1 7/8
284TC 7 5 1/2 9 1/2 4 3/4 3 1/4 3 1 5/8
284U 7 5 1/2 9 1/2 4 3/4 4 7/8 4 5/8 1 5/8
285AT 7 5 1/2 10 4 3/4 3 3/4 3 1/2 1 7/8
286AT 7 5 1/2 11 4 3/4 3 3/4 3 1/2 1 7/8
286T 7 5 1/2 11 4 3/4 4 5/8 4 3/8 1 7/8
286TC 7 5 1/2 11 4 3/4 4 5/8 1 7/8
286TR 7 5 1/2 11 4 3/4 4 3/4 3 1/8 1 7/8
286TS 7 5 1/2 11 4 3/4 3 1/4 3 1 7/8
286U 7 5 1/2 11 4 3/4 4 7/8 4 5/8 1 7/8
287AT 7 5 1/2 12 1/2 4 3/4 3 3/4 3 1/2 1 7/8
288AT 7 5 1/2 14 4 3/4 3 3/4 3 1/2 1 7/8
289AT 7 5 1/2 16 4 3/4 3 3/4 3 1/2 1 7/8
323AT 8 6 1/4 9 4 3/4 4 1/4 4 2 1/8
324 8 6 1/4 10 1/2 5 1/4 4 7/8 4 5/8 1 5/8
324AT 8 6 1/4 10 1/2 5 1/4 4 1/4 4 2 1/8
324TR 8 6 1/4 10 1/2 5 1/4 5 1/4 3 1/2 2 1/8
324TS 8 6 1/4 10 1/2 5 1/4 3 3/4 3 1/2 1 7/8
324U 8 6 1/4 10 1/2 5 1/4 5 5/8 5 3/8 1 7/8
325AT 8 6 1/4 11 5 1/4 4 1/4 4 2 1/8
326 8 6 1/4 12 5 1/4 4 7/8 4 5/8 1 5/8
326AT 8 6 1/4 12 5 1/4 4 1/4 4 2 1/8
326T 8 6 1/4 12 5 1/4 5 1/4 5 2 1/8
326TR 8 6 1/4 12 5 1/4 5 1/4 3 1/2 2 1/8
326TS 8 6 1/4 12 5 1/4 3 3/4 3 1/2 1 7/8
326U 8 6 1/4 12 5 1/4 5 5/8 5 3/8 1 7/8
327AT 8 6 1/4 14 5 1/4 4 1/4 4 2 1/8
328AT 8 6 1/4 16 5 1/4 4 1/4 4 2 1/8
329AT 8 6 1/4 18 5 1/4 4 1/4 4 2 1/8
363AT 9 7 10 5 7/8 4 3/4 4 1/2 2 3/8
364 9 7 11 1/4 5 7/8 5 5/8 5 3/8 1 7/8
364AT 9 7 11 1/4 5 7/8 4 3/4 4 1/2 2 3/8
364S 9 7 11 1/4 5 7/8 3 1/4 3 1 5/8
364T 9 7 11 1/4 5 7/8 5 7/8 5 7/8 2 3/8
364TR 9 7 11 1/4 5 7/8 5 3/4 3 3/4 2 3/8
364TS 9 7 11 1/4 5 7/8 3 3/4 3 1/2 1 7/8
364U 9 7 11 1/4 5 7/8 6 3/8 6 1/8 2 1/8
365 9 7 12 1/4 5 7/8 5 5/8 5 3/8 1 7/8
365AT 9 7 12 1/4 5 7/8 4 3/4 4 1/2 2 3/8
365T 9 7 12 1/4 5 7/8 5 7/8 4 7/8 2 3/8
324T 8 6 1/4 10 1/2 5 1/4 5 1/4 5 2 1/8
365TR 9 7 12 1/4 5 7/8 5 3/4 3 3/4 2 3/8
365TS 9 7 12 1/4 5 7/8 3 3/4 3 1/2 1 7/8
365U 9 7 12 1/4 5 7/8 6 3/8 6 1/8 2 1/8
366AT 9 7 14 5 7/8 4 3/4 4 1/2 2 3/8
364AT 9 7 11 1/4 5 7/8 4 3/4 4 1/2 2 3/8
367AT 9 7 16 5 7/8 4 3/4 4 1/2 2 3/8
368AT 9 7 18 5 7/8 4 3/4 4 1/2 2 3/8
369AT 9 7 20 5 7/8 4 3/4 4 1/2 2 3/8
